Fabrication Equipment List

The following list of equipment provides you the capacity and capability to support your next product launch. General Stamping & Metalworks delivers turnkey manufacturing scale with total supply chain redundancy and freight savings from consolidating your supply chain all under one roof.

Equipment

Stamping Presses

Our press room runs from quick-turn short-run work up to a 2,000-ton press with a transfer system for parts most shops can’t quote. Coil-fed progressive lines run at 14–25 pieces per minute; transfer stamping covers the geometries progressive dies can’t reach. Parts to 15+ feet. Details on metal stamping services.

Fabrication Equipment List

130 machines and work cells across our South Bend, Indiana and Tomah, Wisconsin plants. Stamping presses are listed above. Updated November 2026.

No.Equipment FamilyEquipment Type / ModelAxes / ConfigMake / BrandMax Sheet / Tube SizeMax Thick. (mm)Max Thick. (in)
Laser Cutting16 machines
1Laser Cutting5 Axis Laser5-AxisTRUMPF
2Laser CuttingKohler Part LevelerKohler1600mm x Length251"
3Laser CuttingLaser Trumpf 5030 Fiber Optic2D LaserTrumpf1500x3000mm251"
4Laser CuttingLaser Trumpf 5030 Fiber Optic2D LaserTrumpf1500x3000mm251"
5Laser CuttingTruLaser 3030 (L20)2D LaserTrumpf1500x3000mm251"
6Laser CuttingLASER TRUMPF 5030 L682D LaserTrumpf1500x3000mm251"
7Laser CuttingTrumpf -6kw 30302D LaserTrumpf1500x3000mm251"
8Laser CuttingLaser Trumpf 5030 Fiber2D LaserTrumpf1500x3000mm251"
9Laser CuttingTrumpf TruLaser 50302D LaserTrumpf1500x3000mm251"
10Laser CuttingTruLaser 50302D LaserTrumpf1500x3000mm251"
11Cutting / FormingPunch / Laser Combo2-AxisTrumpf1500x3000mm80.31"
12Laser CuttingTrumpf Fiber 5K2D LaserTrumpf1500x3000mm251"
13Laser CuttingTrumpf Fiber 5K2D LaserTrumpf1500x3000mm251"
14Laser CuttingTruLaser 7000Tube Laser 5-AxisTrumpf254mm OD100.39"
15Laser CuttingTruLaser Tube 7000 Fiber (T07)Tube Laser 5-AxisTrumpf254mm OD100.39"
16Laser CuttingTrumpf Fiber 24K2D LaserTrumpf1500x3000mm401.57"
Tube Bending & Forming4 machines
1Tube BendingAmob Tube Bender E15010 AxisAMOB150mm Ø
2Tube BendingBender Pines8 AxisPINES75mm Ø
3Tube BendingBLM10 AxisBLM63.5mm Ø
4Tube BendingErcolina Pyramid Roll3 AxisErcolina

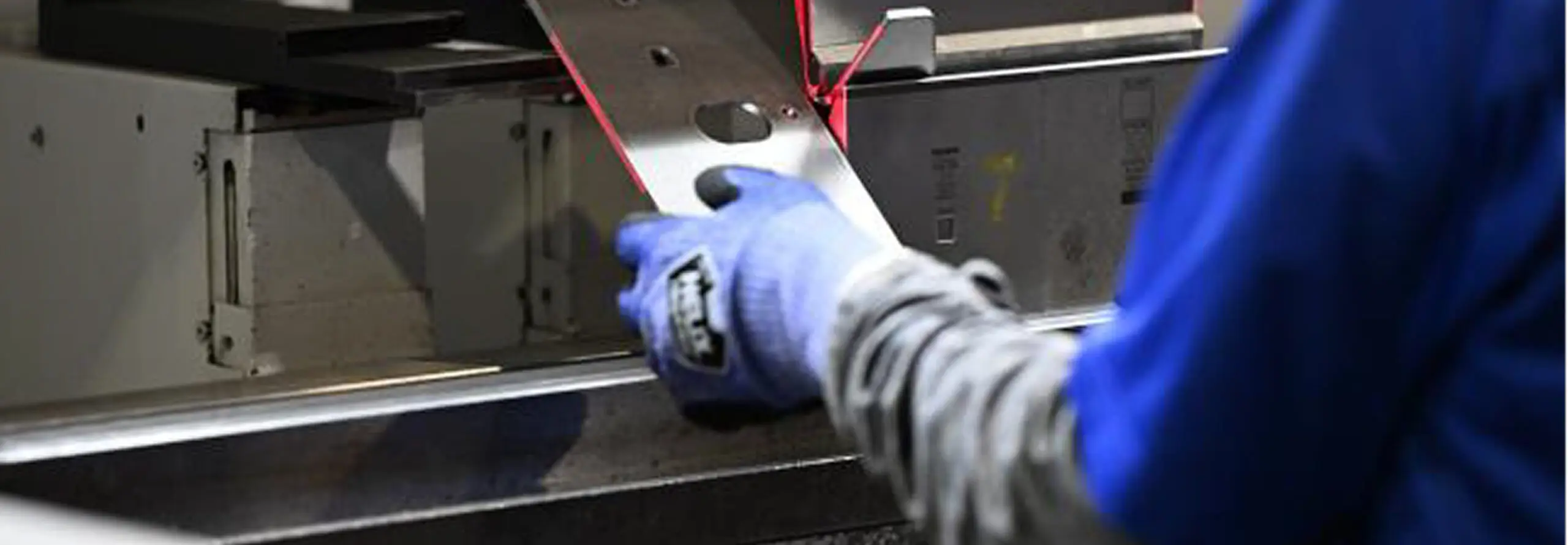

Bending & Forming24 machines
1BendingPress Brake, Trumpf V2001 AxisTrumpfPost Width Limited12.71/2"
2BendingPress Brake, Trumpf V2001 AxisTrumpfPost Width Limited12.71/2"
3BendingPress Brake Trumpf V2301 AxisTrumpfPost Width Limited12.71/2"
4BendingPress Brake, Trumpf V851 AxisTrumpfPost Width Limited9.53/8"
5BendingPress Brake, Trumpf V851 AxisTrumpfPost Width Limited9.53/8"
6BendingPress Brake 7036 w/cobot1 Axis + CobotTrumpf/URPost Width Limited6.41/4"
7BendingPressBrake, Trumpf 70361 AxisTrumpfPost Width Limited9.53/8"
8BendingPressBrake, Trumpf 70361 AxisTrumpfPost Width Limited9.53/8"
9BendingPressBrake, Trumpf 70361 AxisTrumpfPost Width Limited9.53/8"
10BendingTrumpf Trubend 5170S1 AxisTrumpfPost Width Limited12.71/2"
11BendingTrumpf Trubend 5170S1 AxisTrumpfPost Width Limited12.71/2"
12BendingTrumpf TruBend 70501 AxisTrumpfPost Width Limited6.41/4"
13BendingTrumpf TruBend 70501 AxisTrumpfPost Width Limited6.41/4"
14BendingTrumpf Trubend 5170 (B23)1 AxisTrumpfPost Width Limited9.53/8"
15BendingTrumpf Trubend 53201 AxisTrumpfPost Width Limited12.71/2"
16BendingTrumpf V2001 AxisTrumpfPost Width Limited9.53/8"
17BendingTrumpf V2001 AxisTrumpfPost Width Limited9.53/8"
18BendingAccurpressAccupressPost Width Limited
19BendingTrumpf V851 AxisTrumpfPost Width Limited9.53/8"
20BendingFinn PowerPost Width Limited
21BendingTrumpf 53201 AxisTrumpfPost Width Limited9.53/8"
22BendingTrumpf 70361 AxisTrumpfPost Width Limited9.53/8"
23BendingBendmaster Robotic Press Brake1 Axis + CobotBendmasterPost Width Limited12.71/2"
24BendingTrumpf 52301 AxisTrumpfPost Width Limited9.53/8"
Welding34 machines
1WeldingManual Weld Cell 1ManualLincoln12.71/2"
2WeldingManual Weld Cell 1ManualLincoln12.71/2"
3WeldingManual Weld Cell 1ManualLincoln12.71/2"
4WeldingManual Weld Cell 1ManualLincoln12.71/2"
5WeldingManual Weld Cell 1ManualLincoln12.71/2"
6WeldingManual Weld Cell 1ManualLincoln12.71/2"
7WeldingManual Weld Cell 1ManualLincoln12.71/2"
8WeldingManual Weld Cell 1ManualLincoln12.71/2"
9WeldingManual Weld Cell 1ManualLincoln12.71/2"
10WeldingManual Weld Cell 1ManualLincoln12.71/2"
11WeldingManual Weld Cell 1ManualLincoln12.71/2"
12WeldingManual Weld Cell 1ManualLincoln12.71/2"
13WeldingManual Weld Cell 1ManualLincoln12.71/2"
14WeldingManual Weld Cell 1ManualLincoln12.71/2"
15WeldingManual Weld Cell 1ManualLincoln12.71/2"
16WeldingManual Weld Cell 1ManualLincoln12.71/2"
17WeldingManual Weld Cell 1ManualLincoln12.71/2"
18WeldingManual Weld Cell 1ManualLincoln12.71/2"
19WeldingManual Weld Cell 1ManualLincoln12.71/2"
20WeldingManual Weld Cell 1ManualLincoln12.71/2"
21WeldingManual Weld Cell 1ManualLincoln12.71/2"
22WeldingManual Weld Cell 1ManualLincoln12.71/2"
23WeldingBLUCO Welding Station D28ManualLincoln12.71/2"
24WeldingBluco Welding CellManualLincoln12.71/2"
25WeldingBluco Welding CellManualLincoln12.71/2"
26WeldingW-System 20 Robot6-AxisLincoln12.71/2"
27WeldingLincoln Electric / Ferris WheelDual 6-AxisLincoln12.71/2"
28WeldingRobotic Weld Cell 86-AxisLincoln12.71/2"
29WeldingLincoln Electric6-AxisLincoln12.71/2"
30WeldingLincoln Dual Arm System 40Dual 6-AxisLincoln12.71/2"
31WeldingLincoln Dual Arm System 40Dual 6-AxisLincoln12.71/2"
32WeldingLincoln Weld CellManualLincoln12.71/2"
33WeldingRobot Weld Cell6-AxisLincoln12.71/2"
34WeldingRobot Weld Cell6-AxisLincoln12.71/2"
CNC Machining13 machines
1CNCProduction Machine Staging3 Axis
2CNCCold Saw1 Axis6" DIA
3CNCCold Saw1 Axis6" DIA
4CNCDrill1 Axis
5CNCDrill1 Axis
6CNCDrill & Tap
7CNCHurco VM1 CNC Mill
8CNCDrill, Pneumatic
9CNCHAAS TM13 AxisHAAS
10CNCHAAS VF-43 AxisHAAS
11CNCHAAS VF-43 AxisHAAS
12CNCHAAS VF63 AxisHAAS
13CNCHAAS VF63 AxisHAAS
Deburring & Finishing3 machines
1DeburringAutomatic Deburring Machine — Belt/BrushCNC / AutoLissmac250.98"
2DeburringAutomatic Deburring Machine — Belt/BrushCNC / AutoLissmac250.98"
3DeburringBrushing / Edge Rounding MachineCNC / AutoTimesavers / Grind Master1500 x 3000 mm100.39"
Assembly & Sub-Assembly30 machines
1AssemblyArbor PressManual
2AssemblyAssembly - GCSUpright
3AssemblyAssembly - GCSUpright 2
4AssemblyAssembly 1
5AssemblyAssembly 2
6AssemblyAssembly 3
7AssemblyAssembly 4
8AssemblyAssembly 5
9AssemblyAssembly 6
10AssemblyAssembly 7
11AssemblyAssembly 8
12AssemblyCoupler 1
13AssemblyCoupler 10
14AssemblyCoupler 11
15AssemblyCoupler 12
16AssemblyCoupler 2
17AssemblyCoupler 3
18AssemblyCoupler 4
19AssemblyCoupler 5
20AssemblyCoupler 6
21AssemblyCoupler 7
22AssemblyCoupler 8
23AssemblyCoupler 9
24AssemblyInsertion Press
25AssemblyOrbitform 12 Axis
26AssemblyOrbitform 22 Axis
27AssemblyOrbitform 32 Axis
28AssemblyStaking Press WC 011 Axis
29AssemblyStaking Press WC 21 Axis
30AssemblyStaking Press WC 31 Axis
Inspection6 machines
1QualityQuality3-Axis CNCZeiss / Hexagon / Renishaw
2QualityQuality-CMM3 Axis CMMMade To MeasurePer CMM spec
3QualityQuality-Qual1Romer ArmHexagon1200mm³
4QualityQuality-Qual2Romer ArmHexagon1200mm³
5QualityQuality-Qual3Romer ArmHexagon1200mm³
6QualityQuality-Qual4Romer ArmHexagon1200mm³

Tool Room

Nine journeyman tool and die makers with in-house tool and die design, build, tryout, and maintenance. Our dies never wait in another shop’s queue. Details on tool and die services.

Why the Equipment List Matters

A supplier’s equipment list is its honesty test — it either can hold your tolerance at your volume or it can’t. If you see the capacity your part needs above, send us the print. If you’re not sure, our engineers will tell you straight, including when a different process would cost you less.

Gallery

FAQs

What is metal bending?

Metal bending forms sheet or tube into a desired shape under pressure without cracking or tearing the material. Consistent results across different material batches (heat numbers) depend on accounting for each alloy’s hardness, tensile strength, and yield. For low-volume, low-cost parts, common methods are press brake, roll, and rotary bending. For high-volume parts, a progressive stamping press combines bending, punching, and forming at 2–3 seconds per part.
